Product display
Product parameter
Product Name: S-TR-328 200W Wall Charger | |||
Model | S-TR-328-3C1A200 | Input | 100V-240V 50Hz/60Hz |
Type-C1 Output | 5V/3A, 9V/3A, 12V/3A, 15V/3A,20V/5A, 28V/5A, 140W Max | Type-C2 Output | 5V/3A, 9V/3A, 12V/3A, 15V/3A,20V/5A, 100W Max |
Type-C3 Output | 5V/3A, 9V/3A, 12V/2.5A,15V/2A, 20V/1.5A, 30W Max | USB-A1 Output | 5V/3A,9V/2A,12V/1.5A,10V/2.25A,4.5V/5A, 22.5W Max |
C1+C2 Output | 100W+100W | C1+C3 Output | 140W+30W |
C1+A Output | 140W+22.5W | C2+C3 Output | 100W+30W |
C2+A Output | 100W+22.5W | C3+A Output | 5V/4A 20W Max |
C1+C2+C3 Output | 100W+70W+30W | C1+C2+A Output | 100W+70W+22.5W |
C2+(C3+A) Output | 100W+20W | C1+C2+(C3+A) Output | 100W+70W+20W |
| Total Power | 200W Max | Certificate | ETL,FCC,CCC,UKCA,SAA,RoHs,KC,PSE |
| Colour | Black, White | Size | 78*75*33mm |
| Plug | EU，US，UK，AU | ||
Product characteristics

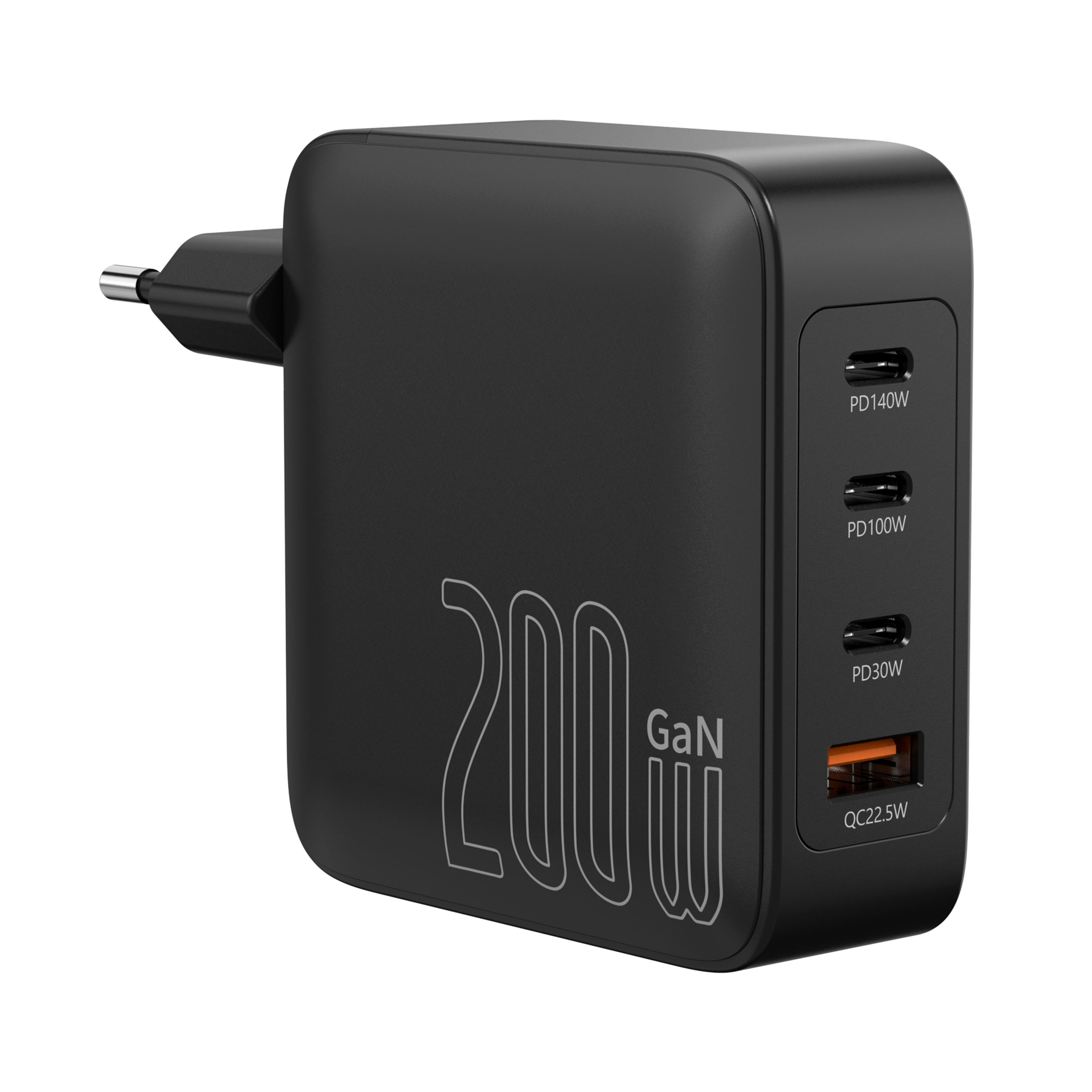

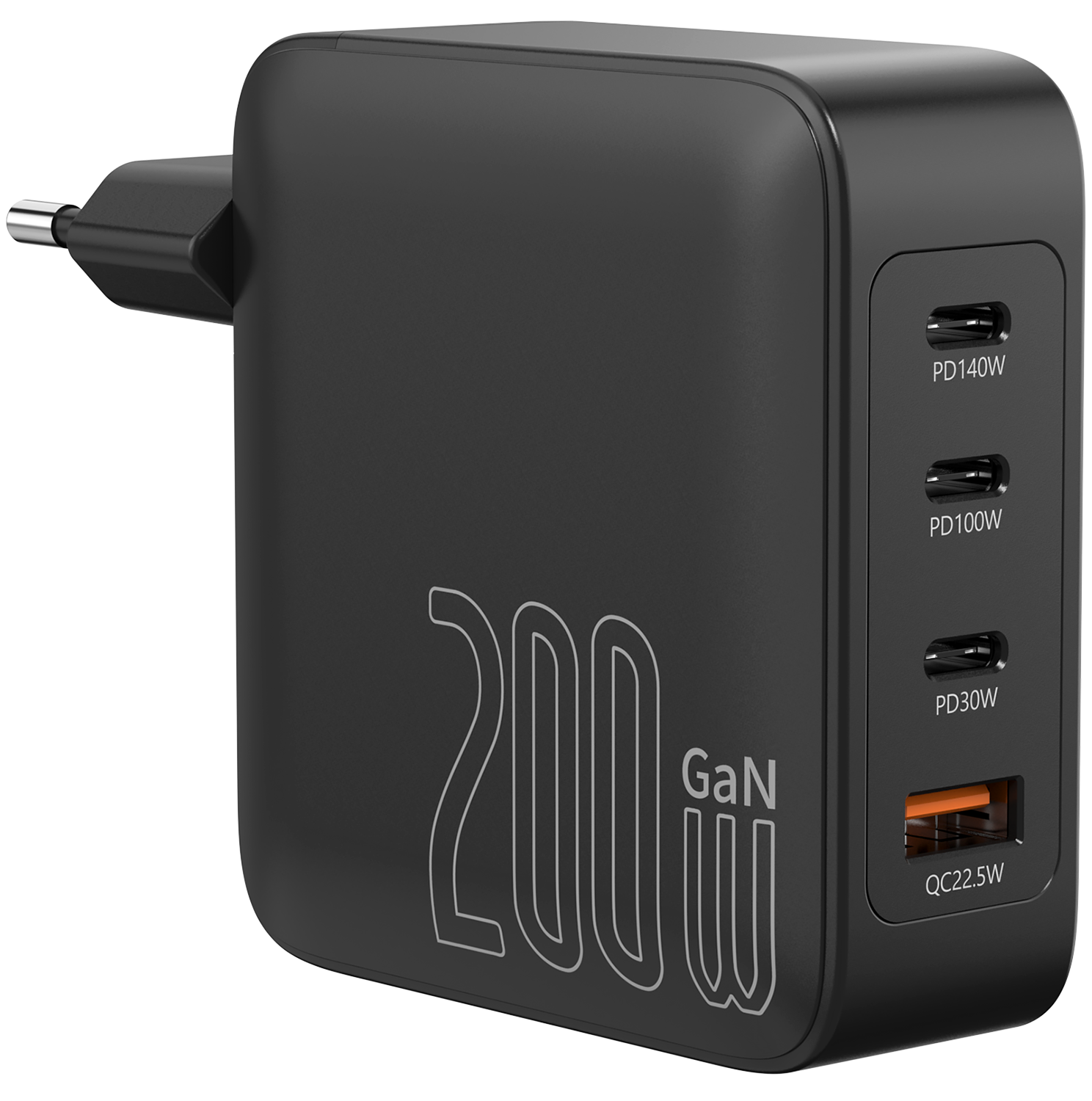

EU

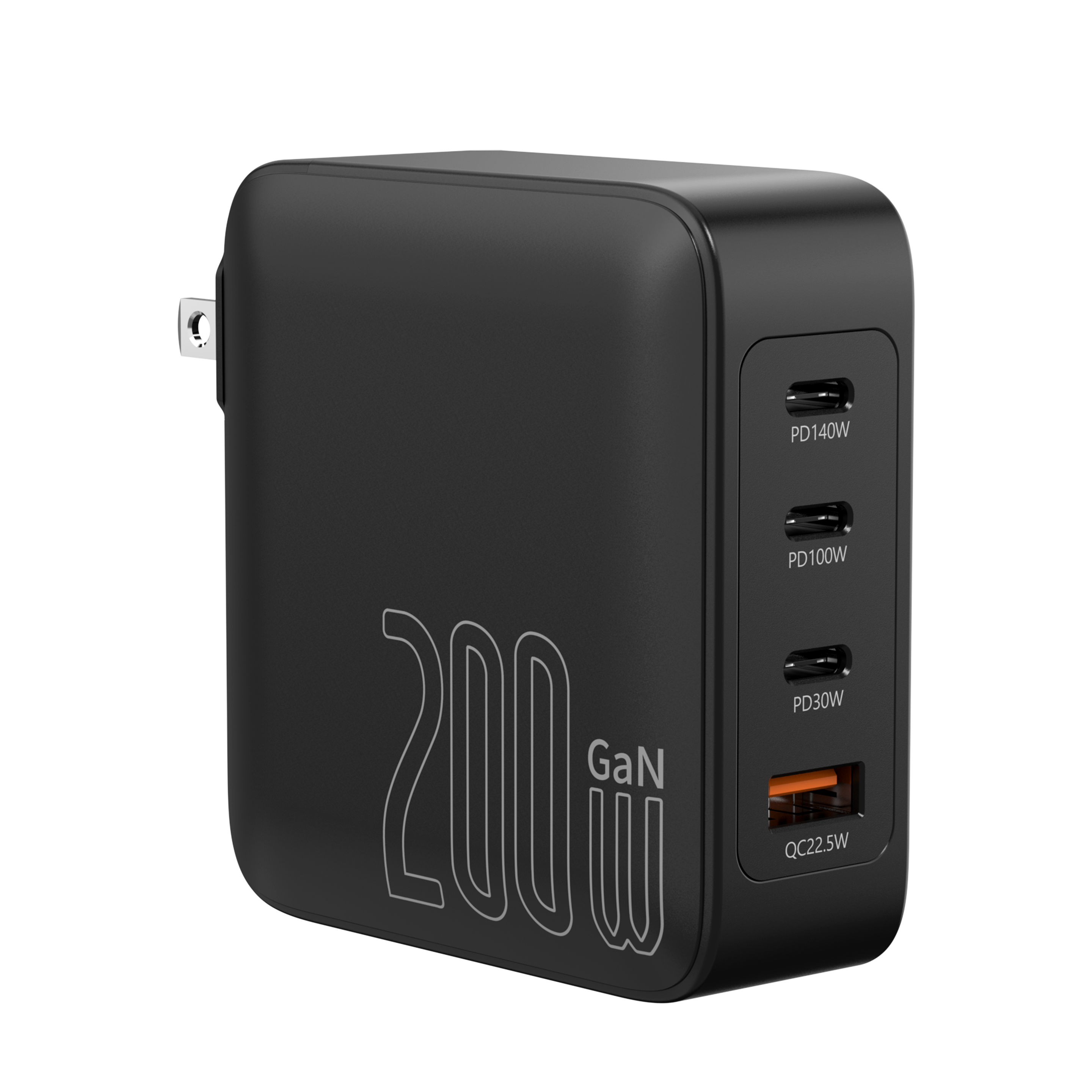

US

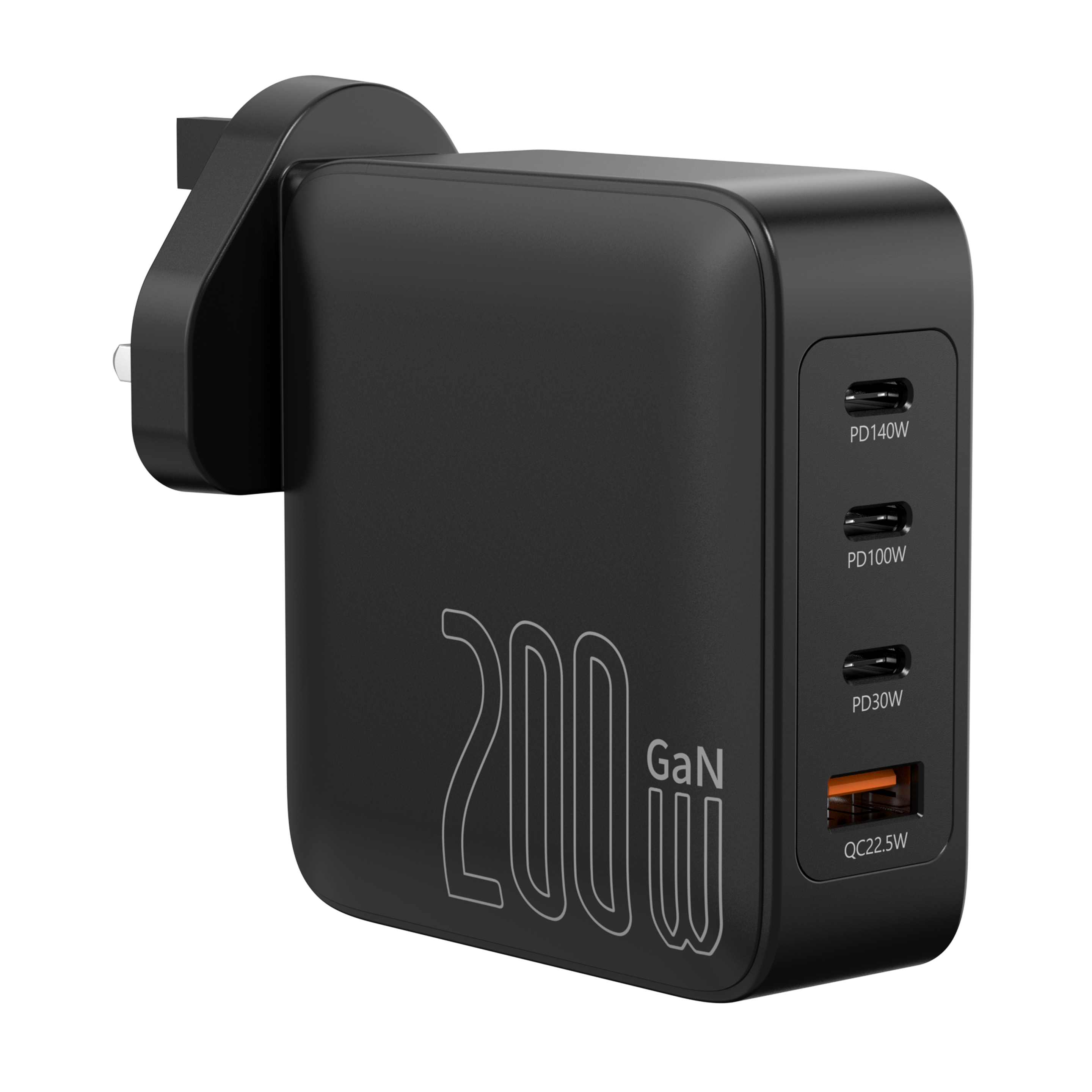

UK

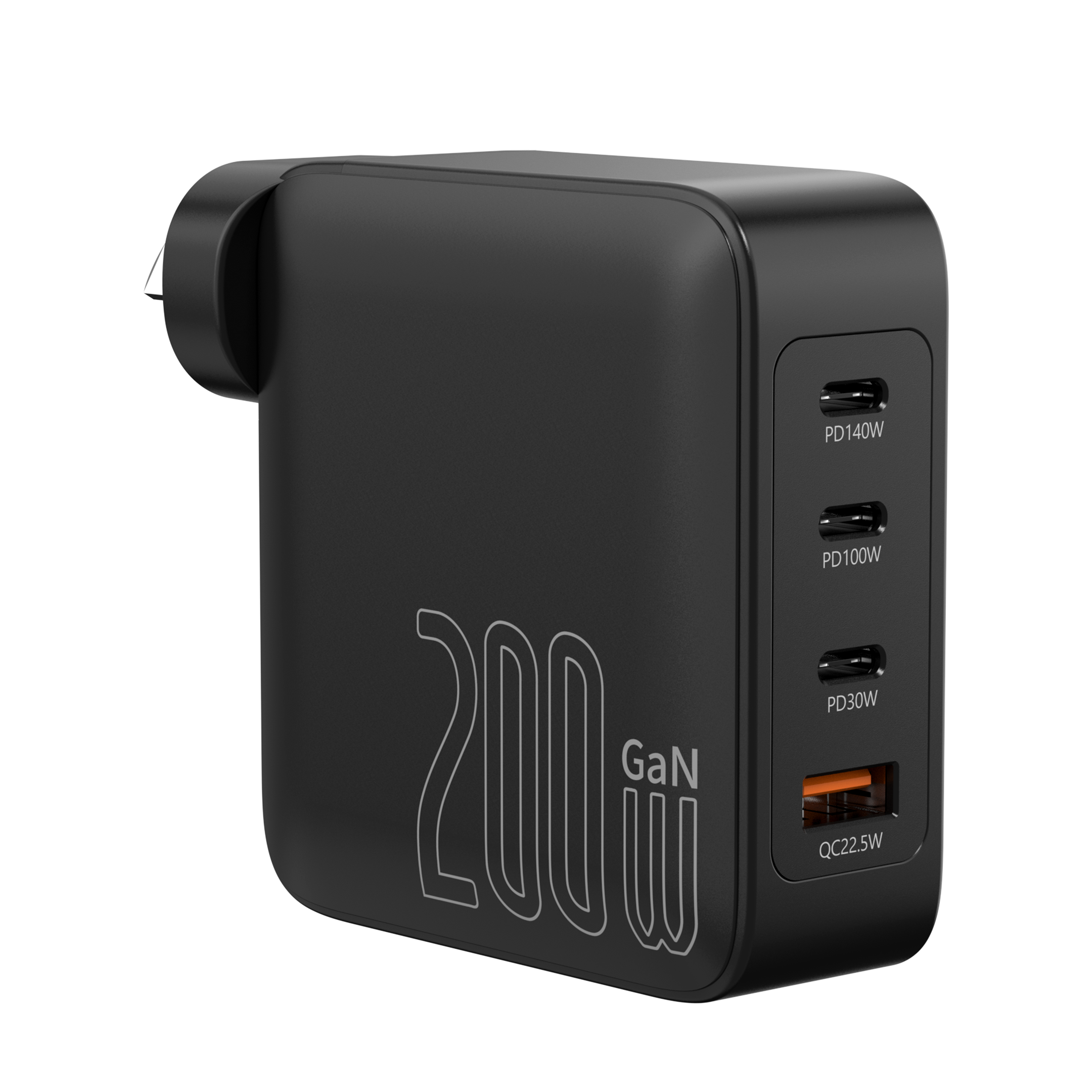

AU
